Puxing PX-888 radio page


[puxing page]
[picture]
[brochure page1]

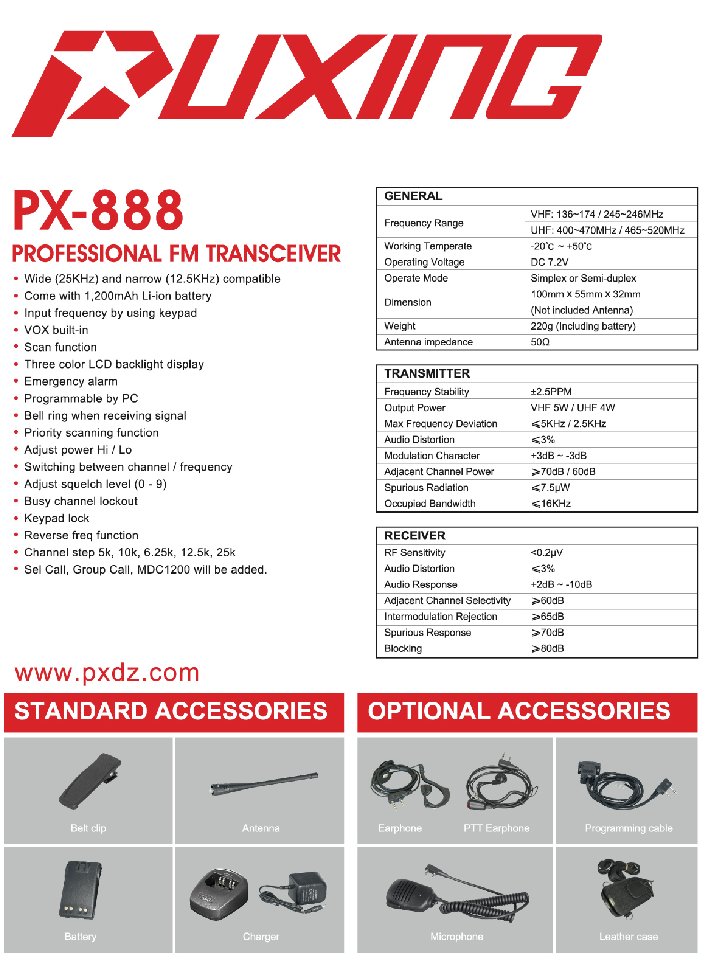

[bruchure page2]
[Users Manual english]


Specifications:

Two lines alphanumeric dot matrix LCD
Double channels watch
DTMF/2 tone/MSK ANI encodes and decode programmable,
Side key programmable
Memory channel capacity: 128
Output power: 4-5W
Wide: 25kHz; Narrow: 12.5kHz spacing programmable at each channel
1200mah Li-ion battery;
Input frequency by using keypad;
VOX gain level (1-9);
Scan function with all channels scan and priority channel scan;
three color LCD backlight display;
Emergency ANI call ;
Programmable by PC;
Adjust power Hi/Low by keypad or PC software;
Adjust squelch 0-9;
Busy channel lockout;
Keypad lock
Time-out Timer
Reverse frequency function;
Channel step 5, 10, 6.25, 12.5 and 25K;
Receive FM radio;
Scrambler;
Voice annunciation;
Hi: 4 to 5W, Low: 0.5 to 1W Output power;
Built-in 50 CTCSS and 104 DCS;
Various frequency band available
PTT ID display
PC software disable frequency input
Kill and unkill by DTMF code
Europe repeater 1750hz tone available

TECHNICAL:
Frequency Range 136―174MHz,245-246MHz,400—470MHz
Working Temperate -20℃―+50℃
Operating Voltage DC 7.2V
Operate Mode Simplex or Semi-duplex
Dimension 100mm×55mm×32mm (Not included Antenna)
Weight 220g (Including battery)
Antenna impedance 50Ω

Transmitter
Frequency Stability ±2.5PPM
Output Power ≦5W
Max Frequency Deviation ≦5KHz
Audio Distortion ≦3%
Modulation Character +3dB—-3dB
Adjacent Channel Power ≥65dB
Spurious Radiation ≤7.5UW(-36db for CE)
Occupied Bandwidth ≤16KHz

Receiver
RF Sensitivity <0.2UV(12DB SINAD)
Audio Distortion ≦3%
Audio Response +2dB—-10dB
Adjacent Channel Selectivity ≥60dB
Intermodulation Rejection ≥60dB
Blocking ≥80dB



PX-888 brochure in pdf (2 page)
